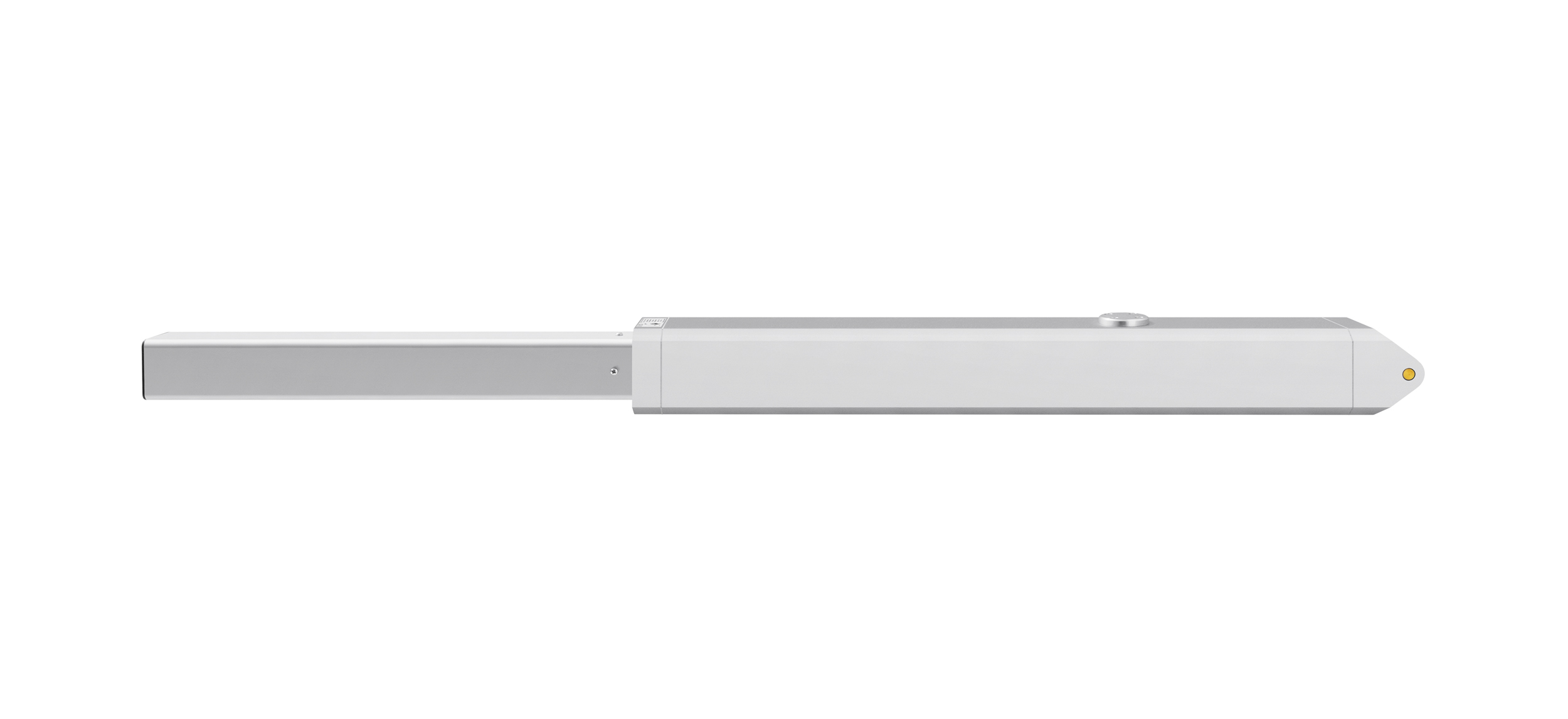

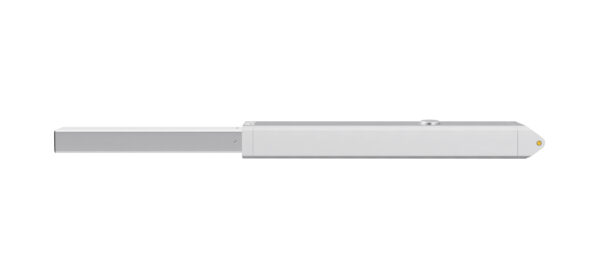

Reversible hydraulic operator, for gates up to 8 m. Industrial use.
-
Innovative technical solutions
The new reversible distributor is made without valves so minimal maintenance is needed to ensure maximum reliability. -
Very intensive use

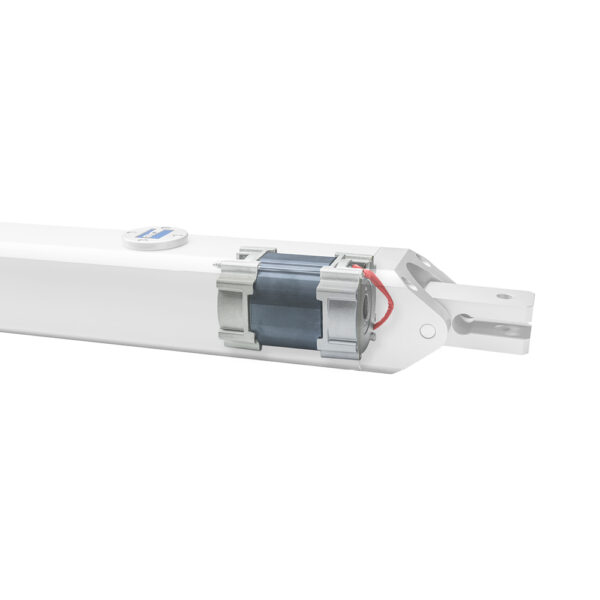

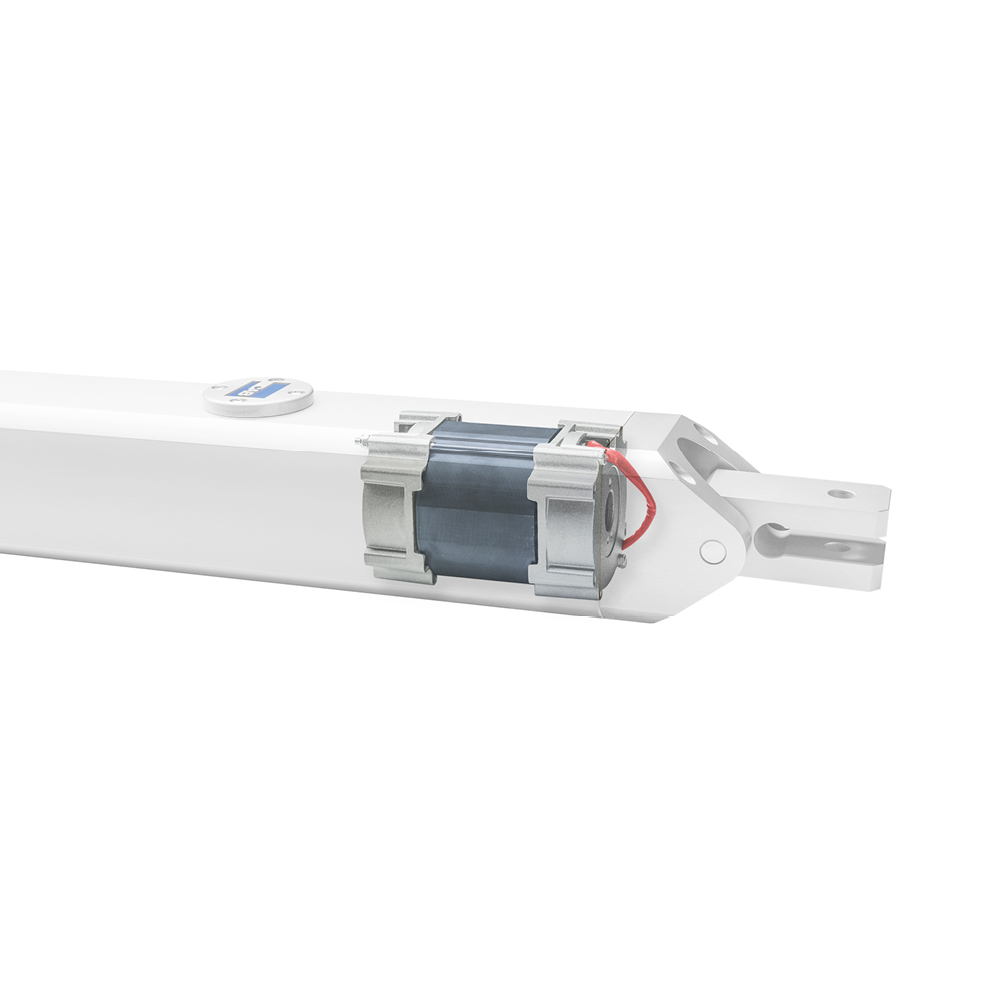

With the longer reservoir and the new improved electric motor, which is completely submerged in the oil, even more intensive use is possible. -
Self-alignment

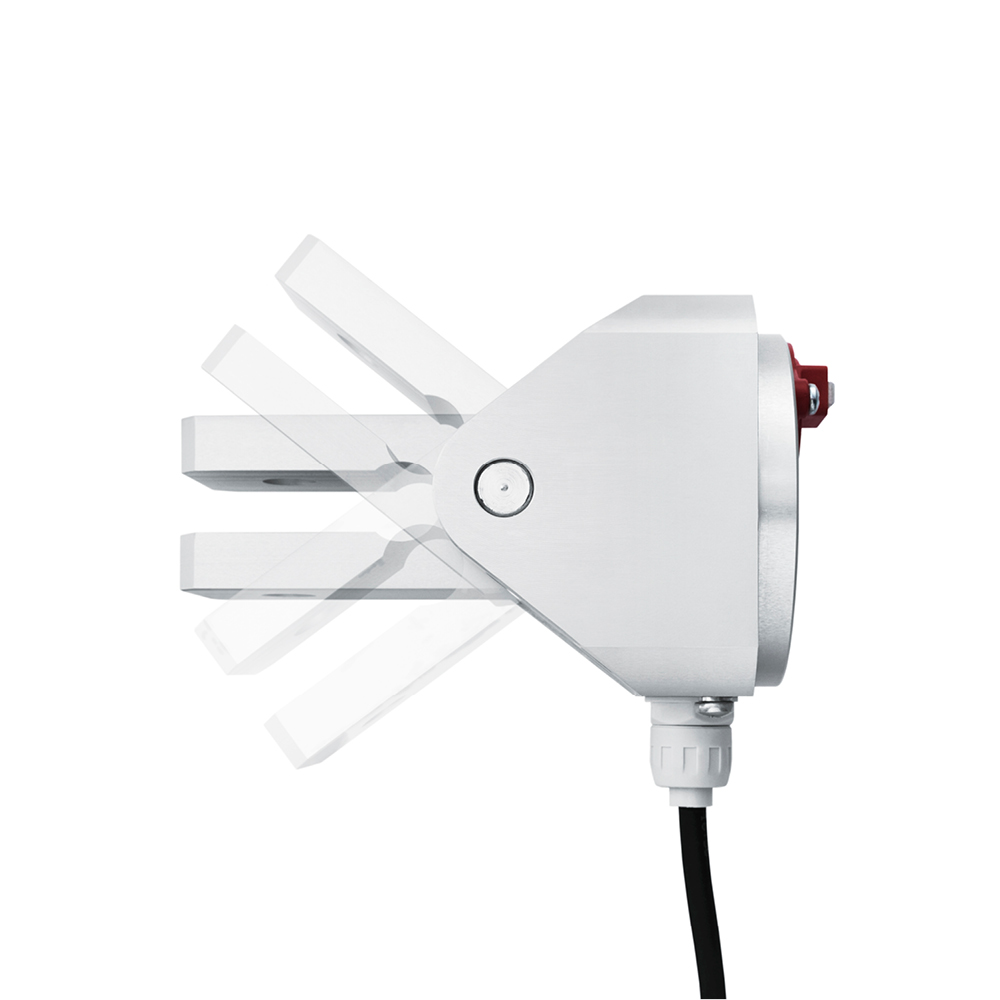

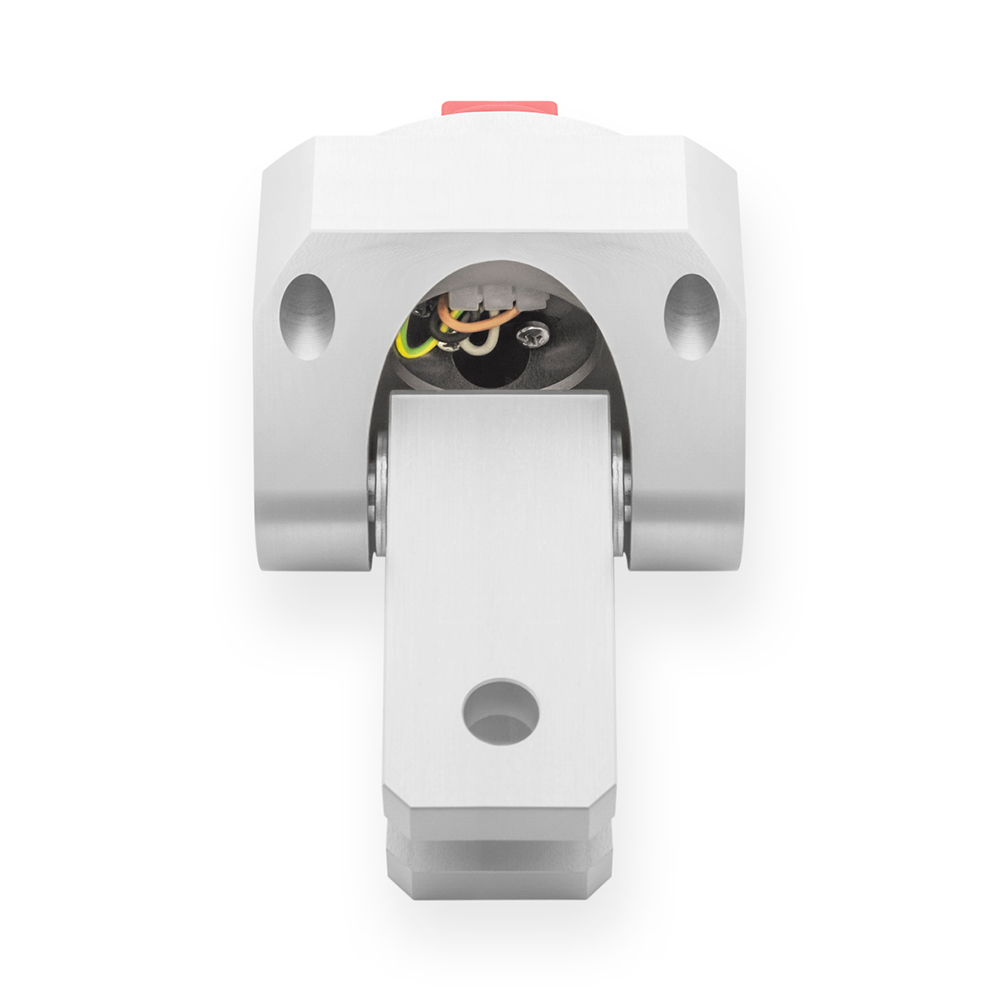

The reinforced brackets and front and rear joints make installation easier even when gates are not perfectly aligned. -
Top performance
Fitted with an electric motor that makes it the most powerful in its category, with maximum thrust of 10,000 N. -
Safe and precise manoeuvring

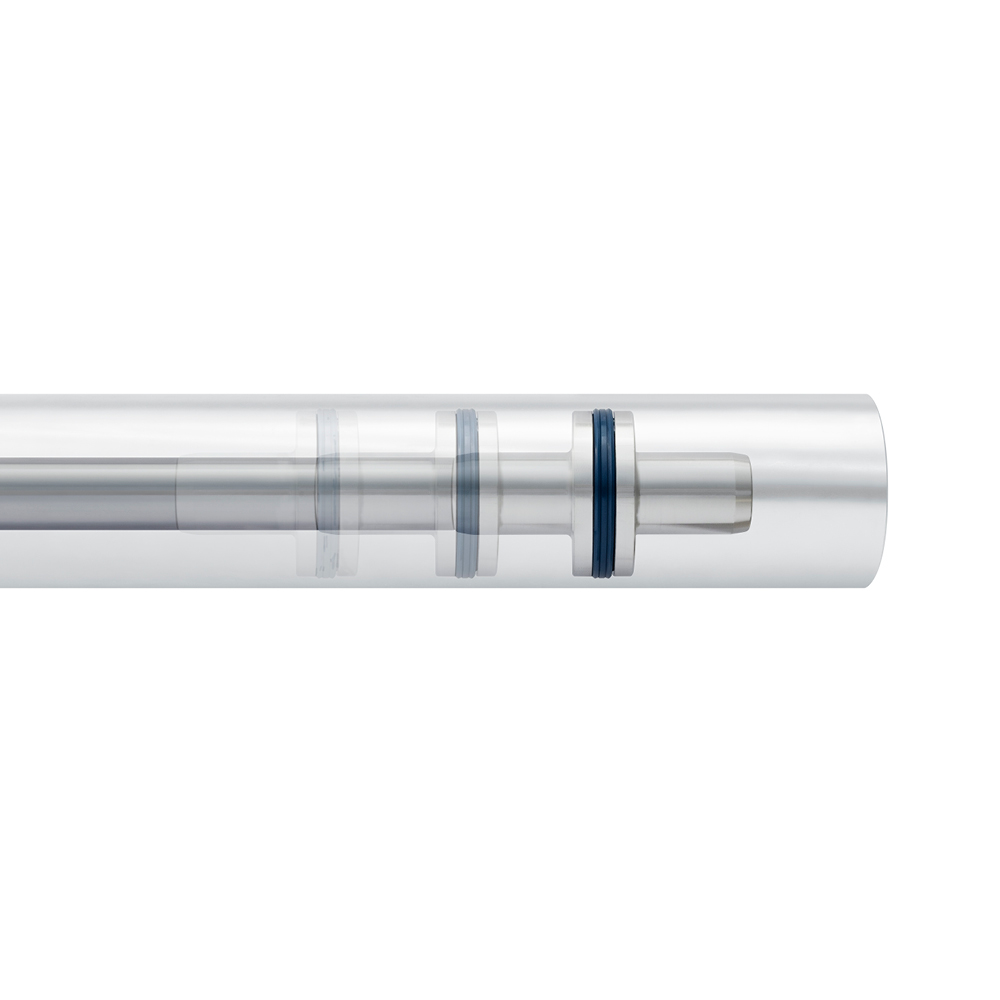

The brass adjustment screws and double-action slowdown mechanism provide very precise manoeuvring and make the system very safe. -
Reliability and high-quality materials
The distributor, header, back plate and piston unit are made from anodised aluminium using a tooling machine, ensuring maximum precision of the components and optimal performance and reliability. -
Very easy to install and maintain
The terminal board makes wiring even easier and lets you swap power cables quickly and easily.

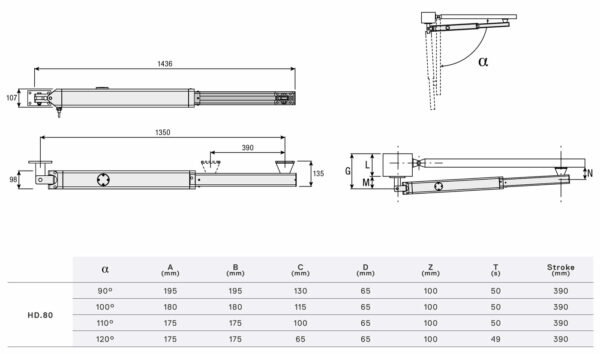

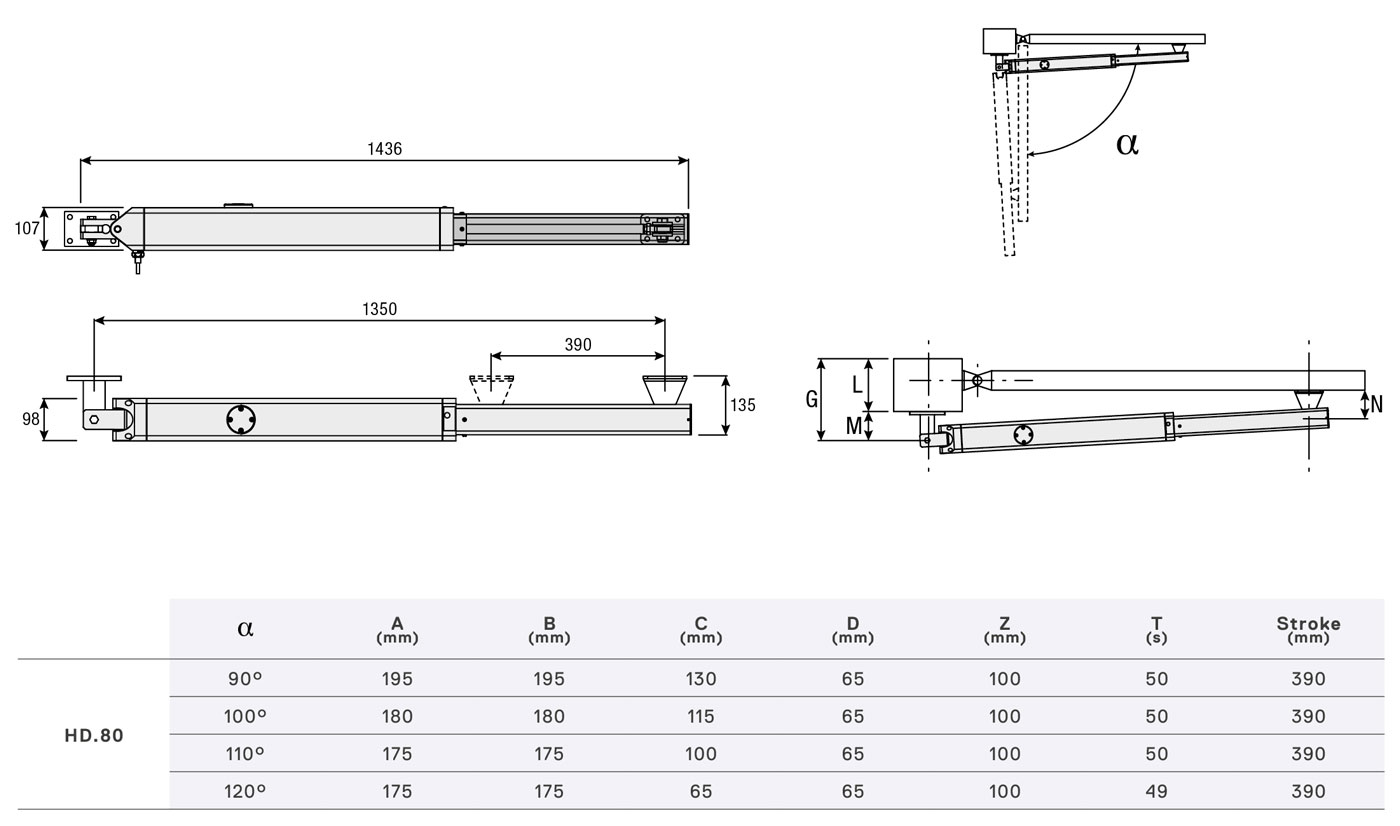

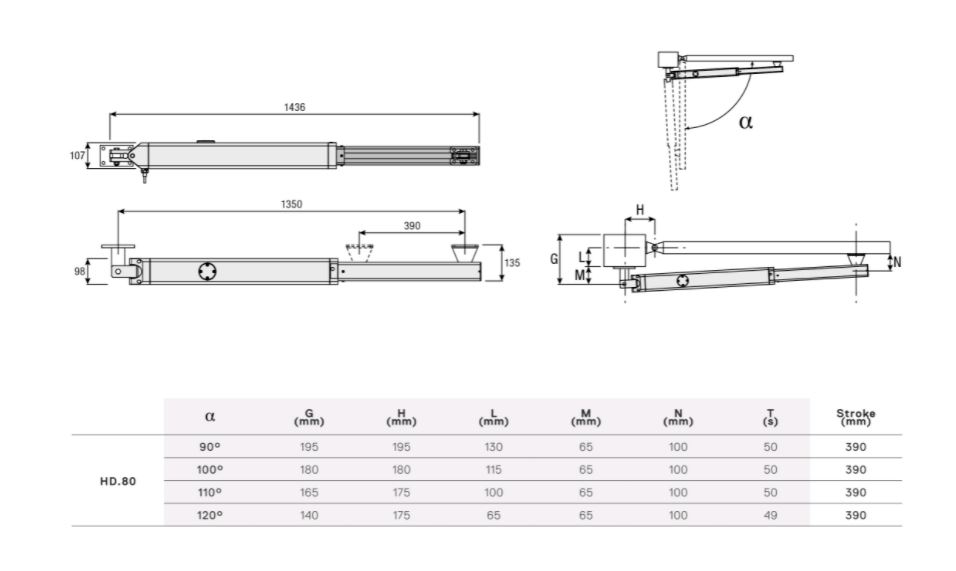

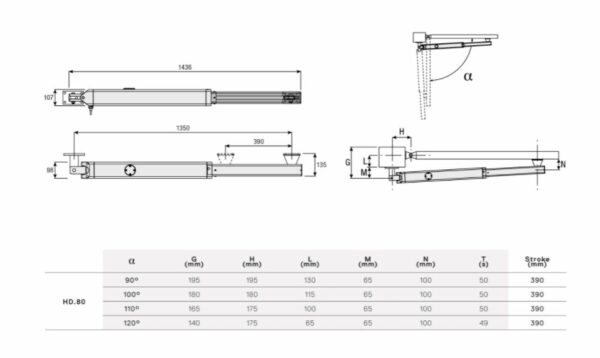

Technical Drawing
