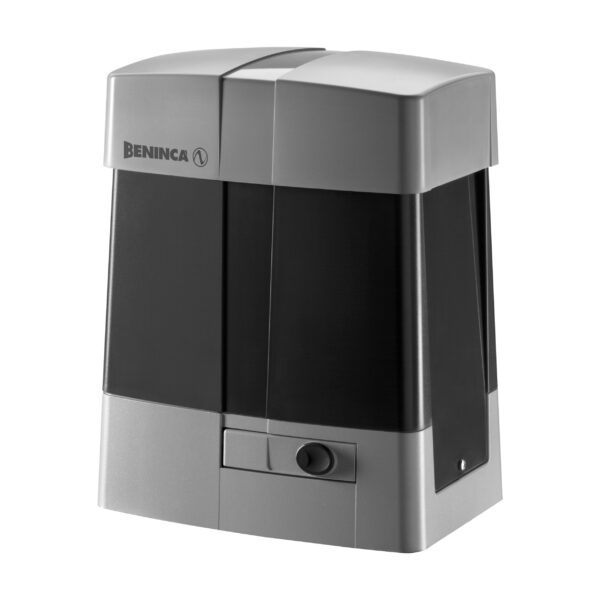

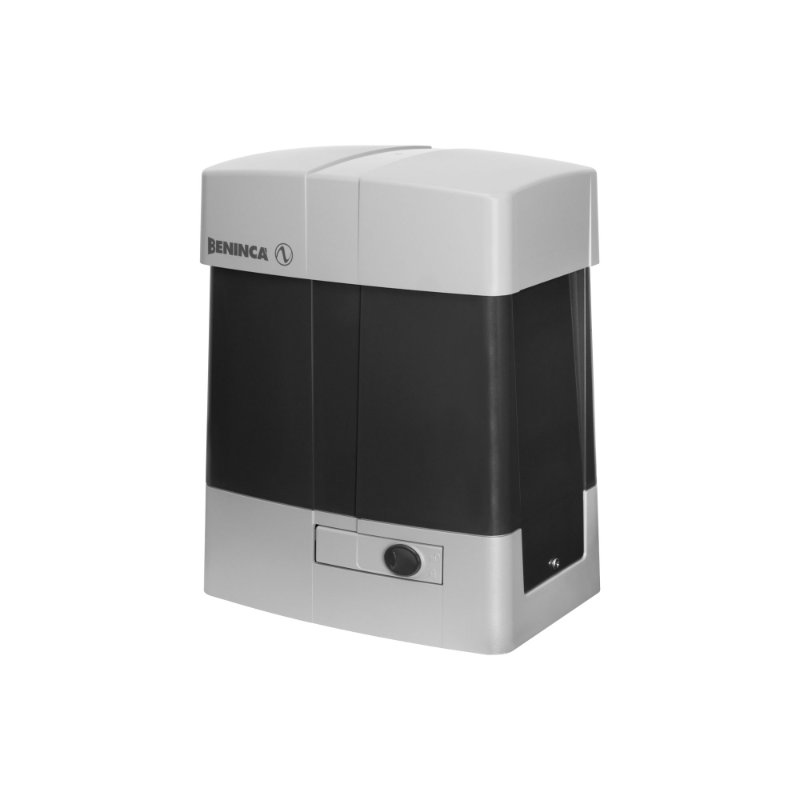

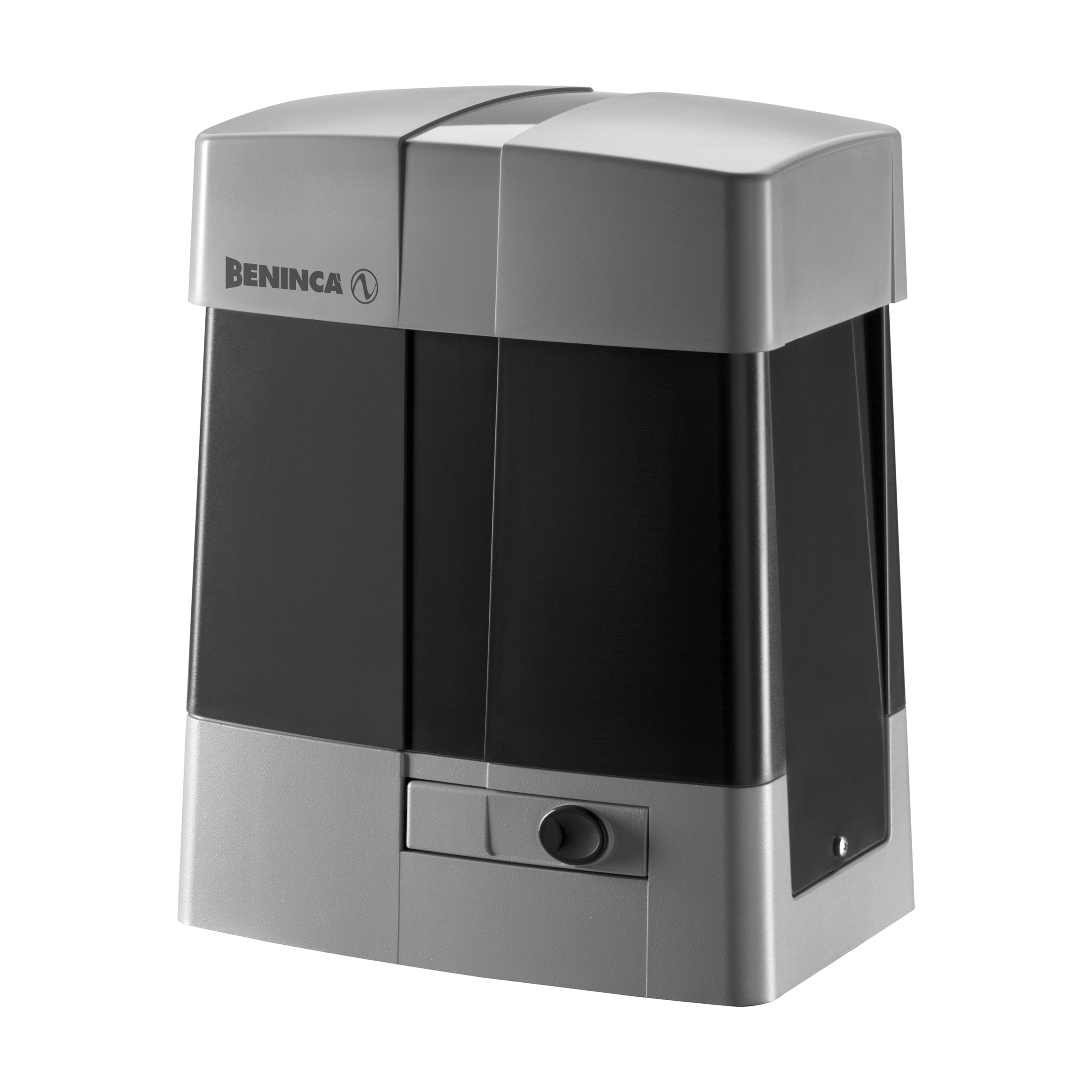

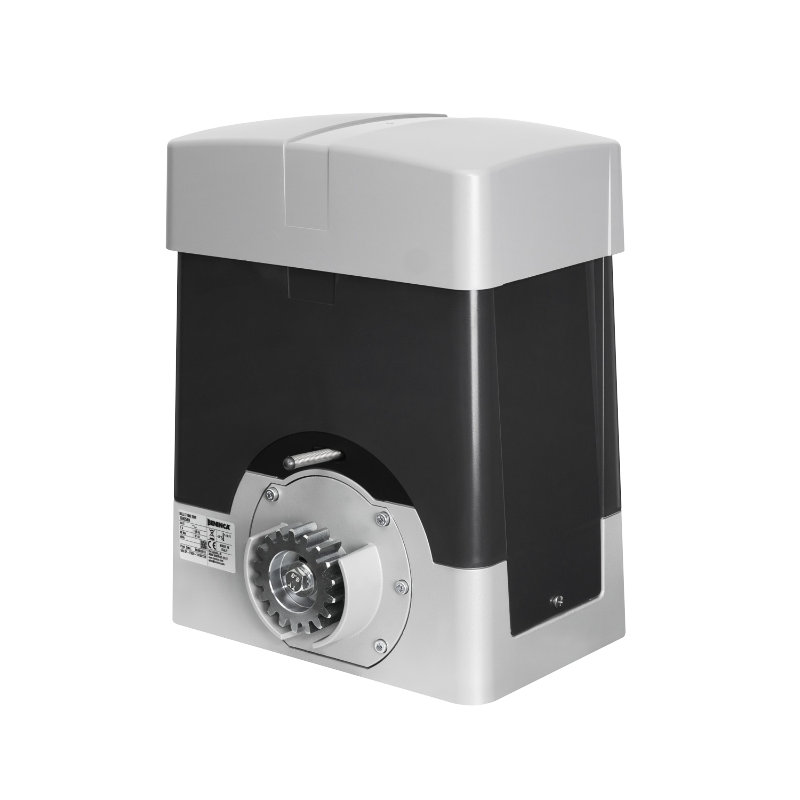

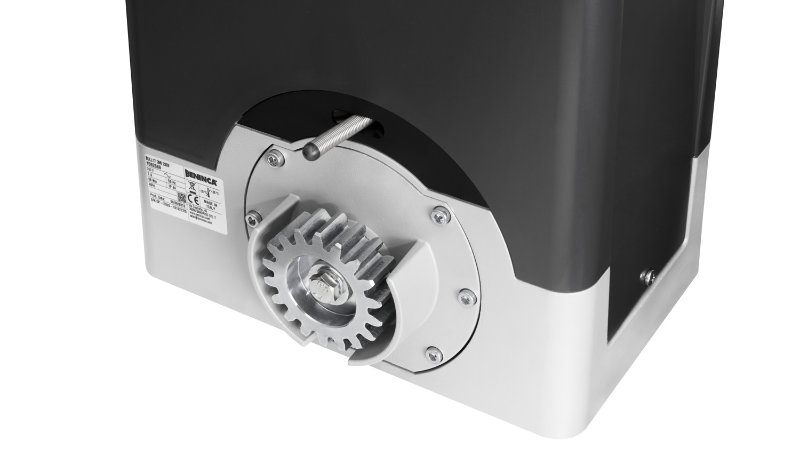

BULL 17OMI – 230Vac Sliding gate motor for gates up to 1700KG – equipped with inverter technology – Commercial Use 230 Vac gear motor for intensive use with integrated control unit, virtual encoder and inverter | The main control unit, located in the top part of the motor and with integrated inverter, makes it possible to calculate the position of the motor starting from the measurement of current intensity on the electric motor (virtual encoder) | The inverter technology allows the speed of the motor to be gradually varied, during both acceleration and deceleration, as well as guaranteeing a more precise adjustment of the gate movement phases and a greater anti-crushing safety | Oil lubrication guarantees maximum duration of the reducer. The type of oil is very effective and guarantees excellent performance even at low temperatures | Reduced mechanical wear of components | The virtual encoder allows proper management of the slowing-down phases, movement tracking (STC system), and torque management in relation to the position of the gate, which guarantees maximum safety | Adjustable speed from 10 to 24 m/min according to gate weight | Safety sensor that stops the motor power supply during release operations | Receiver ONE.2WI is supplied | Metal release lever

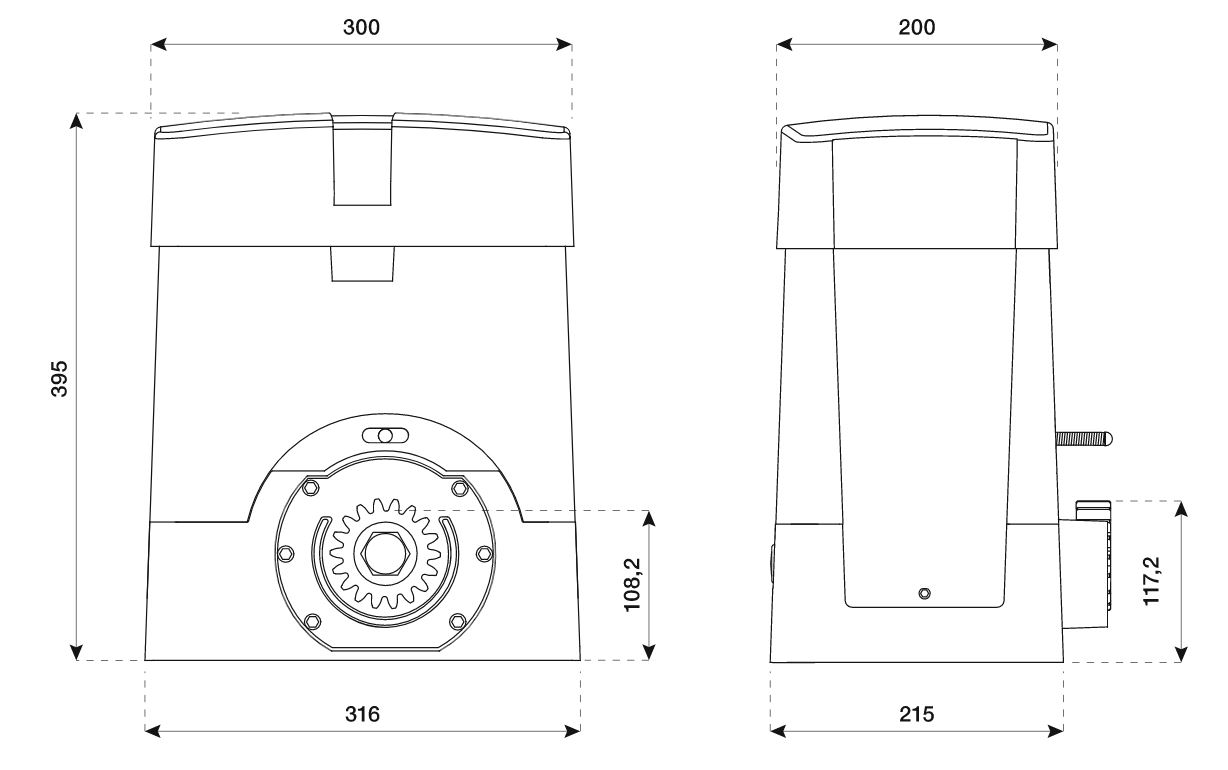

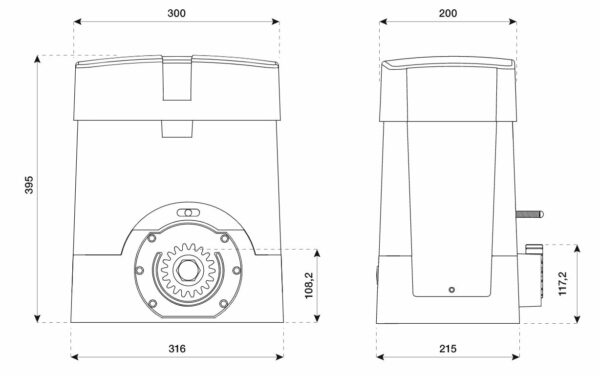

Technical Drawing:
