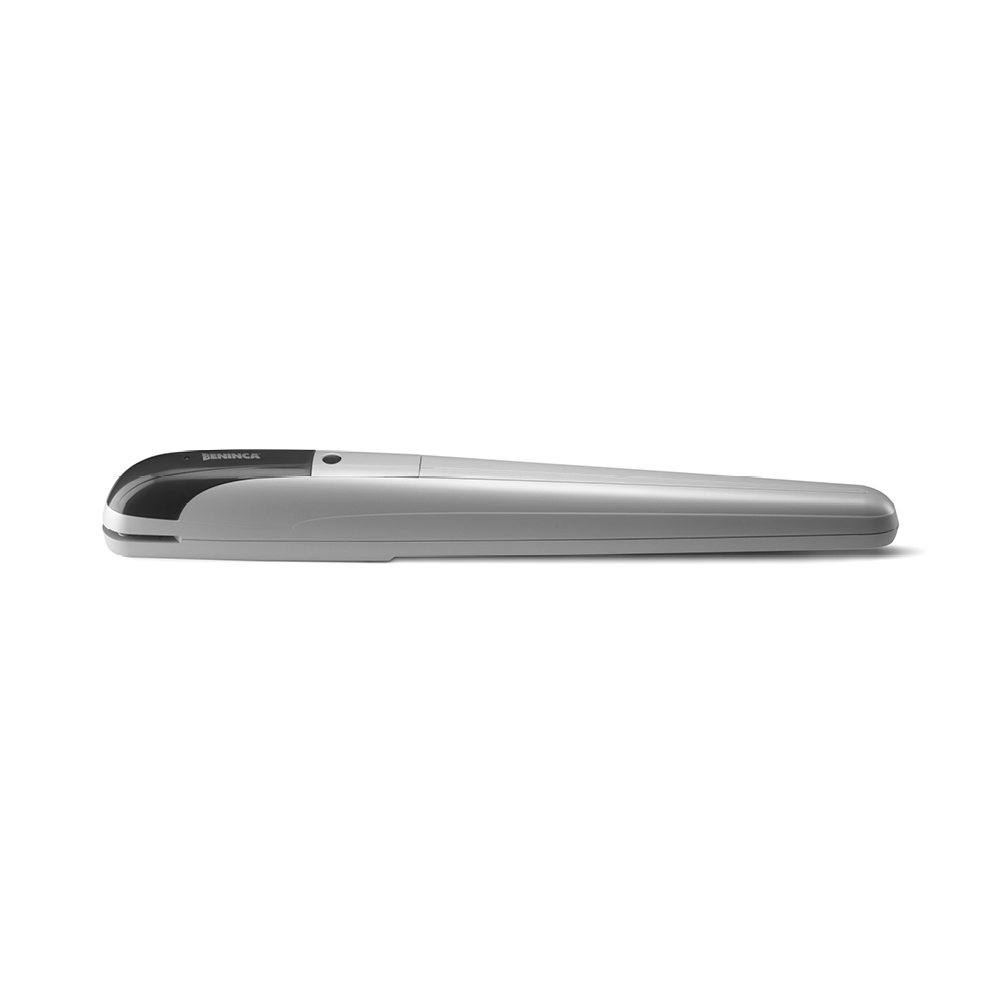

BOB5024E Swing Gate Operator

SKU: BOB5024E , ,

Worm screw post mounted electromechanical ram

Call us about this product

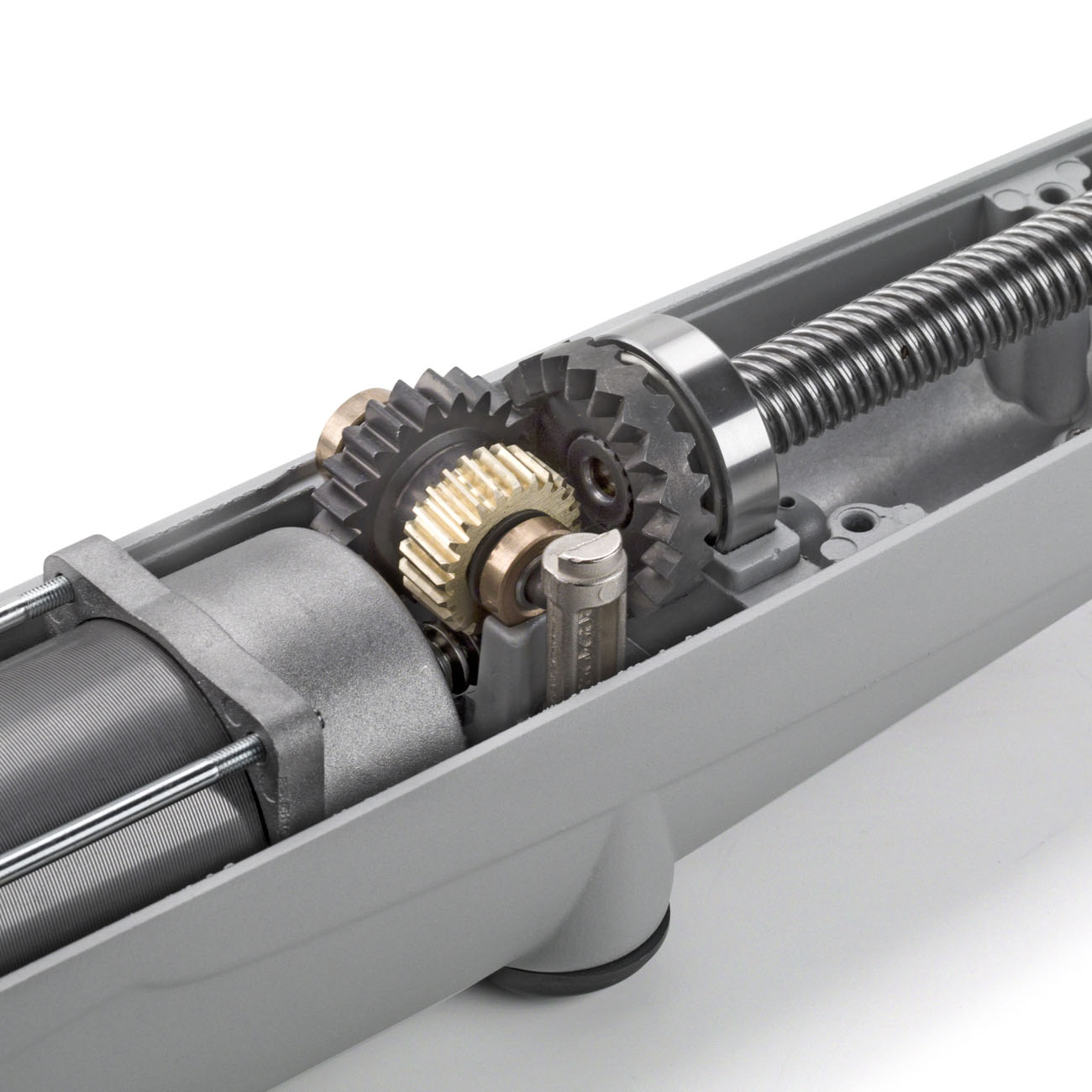

  • Irreversible electromechanical geared motor
  • 24v and 230v motors with encoder for maximum safety and precision in the gate movement
  • Versatile and reliable, suitable for a wide range of applications
  • Built in physical stops, no need for open and close gate stops

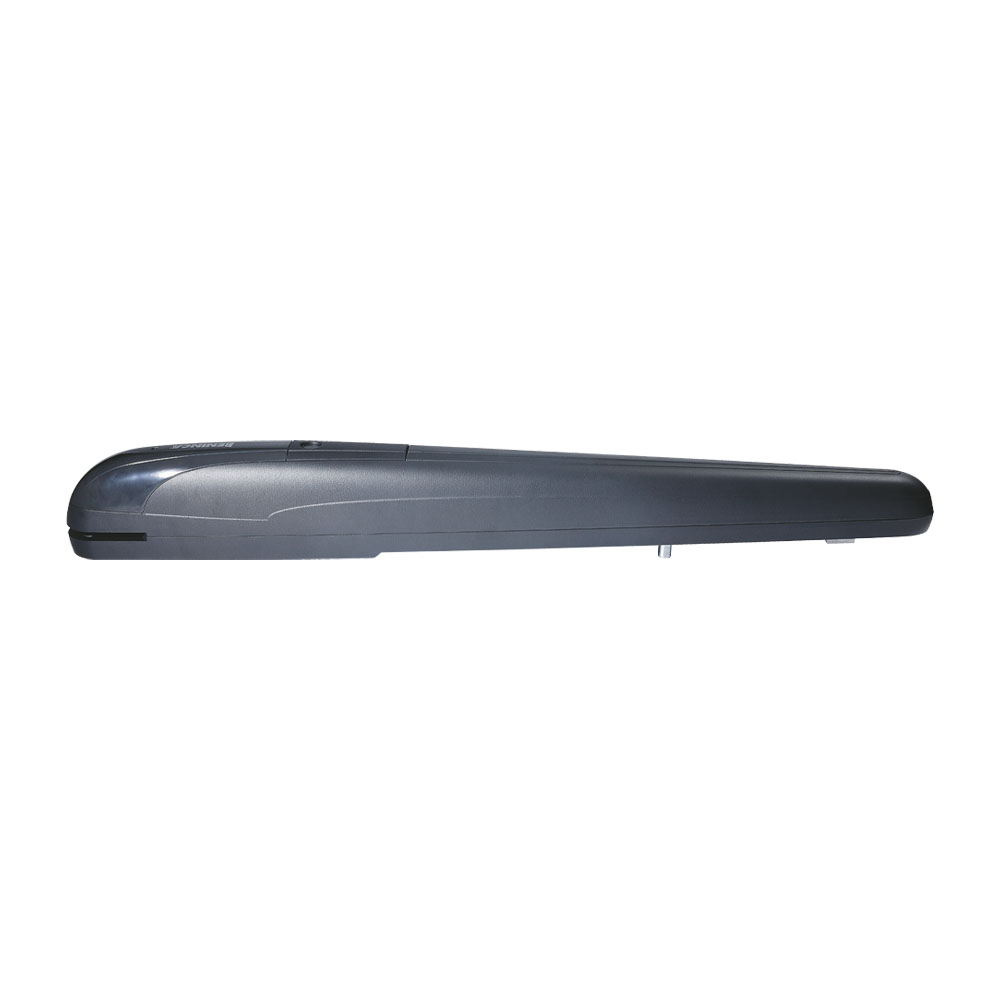

  • Available in very popular anthracite grey finish (BOB50ME.DA)

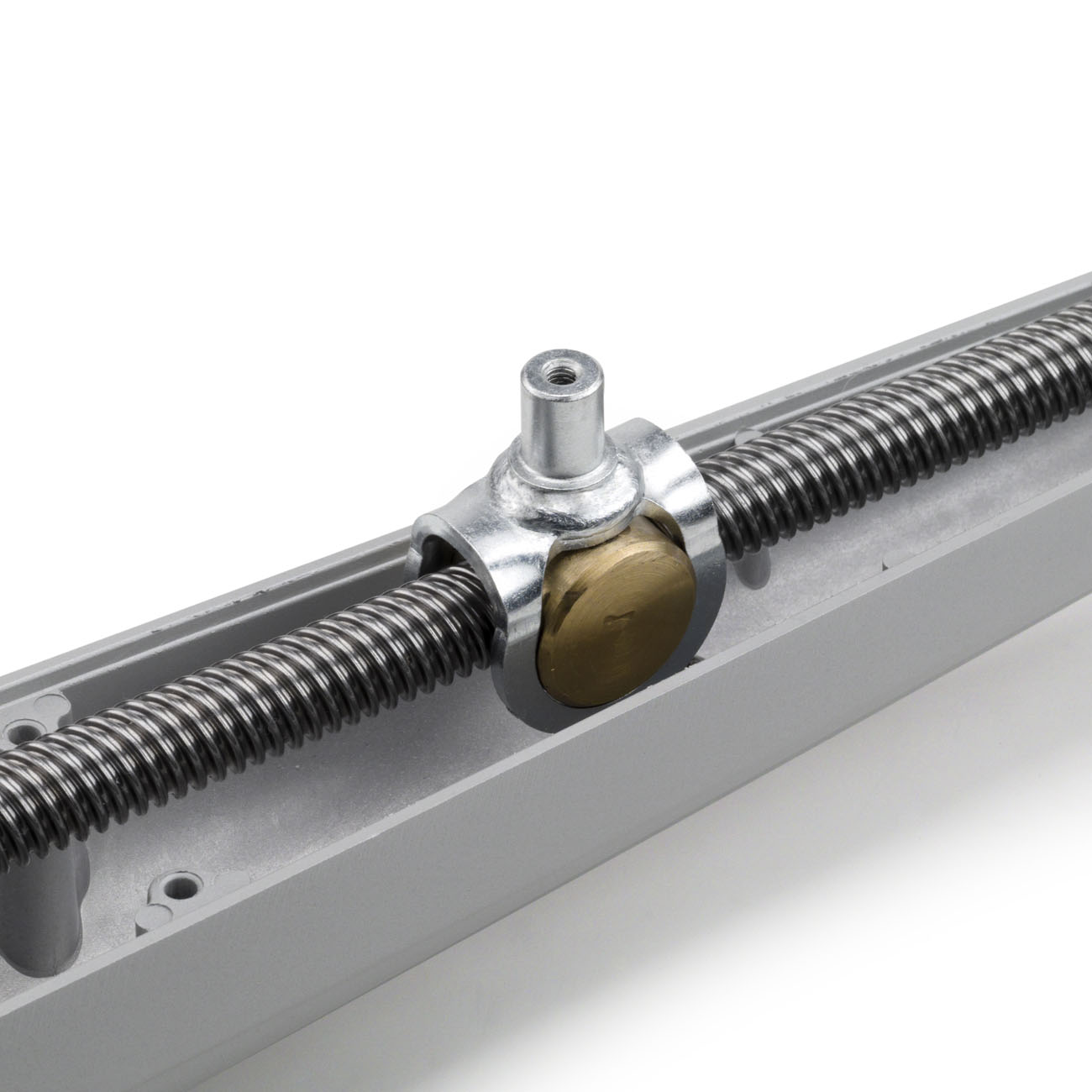

BOB 5024E – 24Vdc Worm Drive Ram for gate leafs up to 5m – built in stops and encoder Irreversible 24 Vdc electromechanical geared motor for intensive use, equipped with encoder | The encoder device ensures maximum safety and precision in the gate moving phases | Amperometric sensor obstacle detection system to prevent crushing | Optional battery powered operation | Reliable, quiet, and quick to install geared motor, thanks to its 2 adjustable mechanical stops for opening and closing | Rolled ball screws Ø 20 mm | Easy access release from above

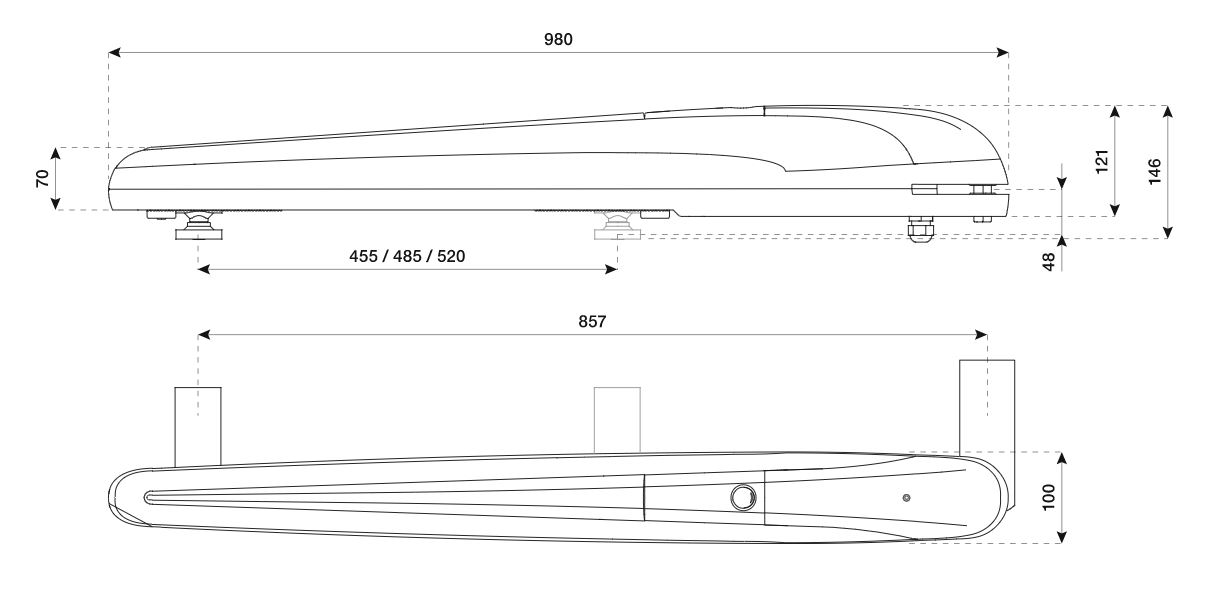

Technical Drawing


Gate UsageResidential, Light Commercial
Motor Supply24Vdc
Max Thrust2200 N
Duty CycleIntensive use
Protection LevelIP44
Max Gate Width5.0m
Motor TypeElectromechanical
Operator stroke455mm Standard, 520mm max
EncoderYES
Wind Loading25%
Built in physical stopsYES
