BISON25 OTI

Operator in oil bath, built-in control unit, receiver, magnetic encoder and inverter.
Three-phase 240Vac operator with control unit and radio receiver.

Call us about this product
Vac Trifase
Virtual Encoder
Inverter
Oleodinamico
512 cod

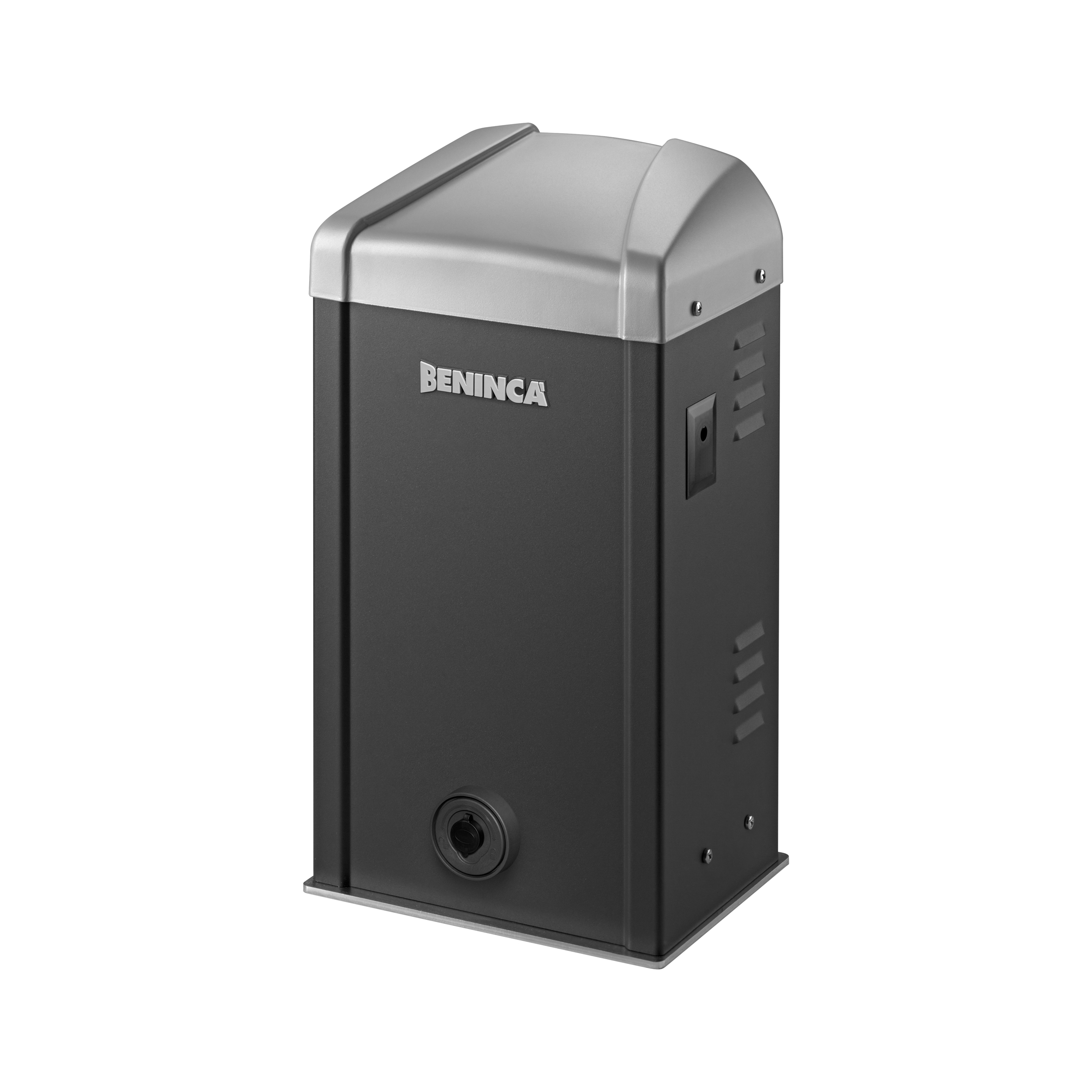

BISON25OTI Sliding Gate Motor
  • Control unit with built-in receiver, magnetic encoder and inverter
  • Oil lubricated reductions
  • IP68 limit switch
  • Personalised release key
  • Three phase 240 Vac geared motor, ventilated for intensive use
  • Full metal mechanics and oil lubrication. The type of oil used ensures maximum efficiency even at low temperatures
  • The encoder device ensures precision in the gate moving phases
  • Casing protective treatment and paint
  • The inverter technology allows for more precise adjustment of the gate moving phases, and increased crush prevention security
  • Optional built-in FTC.S photocells, available as accessory
Gate UsageResidential, Light Commercial, Heavy Duty Commercial
Power Supply240V AC
Motor Supply240V AC
Max Absorbed Current8 A
Max Thrust2500 N
Max Opening Speed19 m/min
Duty CycleIntensive use
Protection LevelIP44
Operating Temperature-20C/+50C
Oil LubricationYES
Max Gate Weight2500Kg
Drive rack specM4
EncoderYES
Weight41.2 kg
Inverter technologyYES
